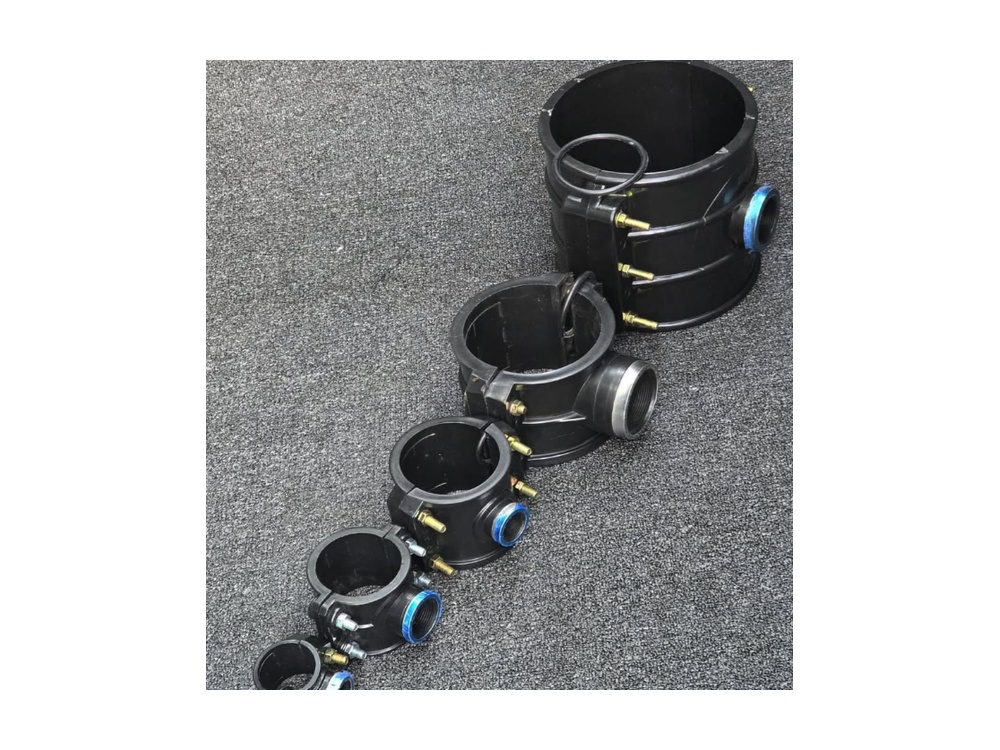

SADDLE CLAMP
High-grade UPVC clamp saddle with zinc-plated/stainless steel bolts, Buna-N/EPDM O-rings, designed for tapping branch lines directly from mains without cutting pipelines.
Enables fast under-pressure service connections onto UPVC or HDPE distribution mains.
Specification tables
Core values are placed before product narrative so buyers can verify fit quickly.
Dimensions
1.5" x 3/4"-8" x 3/4"| Size | L (mm) | D | h | B (mm) | H (mm) |
|---|---|---|---|---|---|
| 1.5" x 3/4" | 50mm Main | 3/4" Outlet | PN 16 | UPVC | 2 Bolts |
| 2" x 3/4" | 63mm Main | 3/4" Outlet | PN 16 | UPVC | 2 Bolts |
| 2.5" x 3/4" | 75mm Main | 3/4" Outlet | PN 16 | UPVC | 4 Bolts |
| 3" x 3/4" | 90mm Main | 3/4" Outlet | PN 16 | UPVC | 4 Bolts |
| 4" x 3/4" | 110mm Main | 3/4" Outlet | PN 16 | UPVC | 4 Bolts |
| 6" x 3/4" | 160mm Main | 3/4" Outlet | PN 16 | UPVC | 4 Bolts |
| 8" x 3/4" | 225mm Main | 3/4" Outlet | PN 16 | UPVC | 6 Bolts |
Operating values
ISO 1452| Spec | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
|---|
Zero leak guarantee at maximum 16 bar test pressure.
Features and compliance
High-grade UPVC clamp saddle with zinc-plated/stainless steel bolts, Buna-N/EPDM O-rings, designed for tapping branch lines directly from mains without cutting pipelines.
Features
4 pointsReinforced UPVC body with molded bolt retention slots
High-tensile zinc-plated or stainless steel bolts and nuts
Profiled Buna-N / EPDM O-ring for dynamic sealing around main pipe
Female BSP threaded outlet for direct ferrule or valve attachment
Standards and limits
