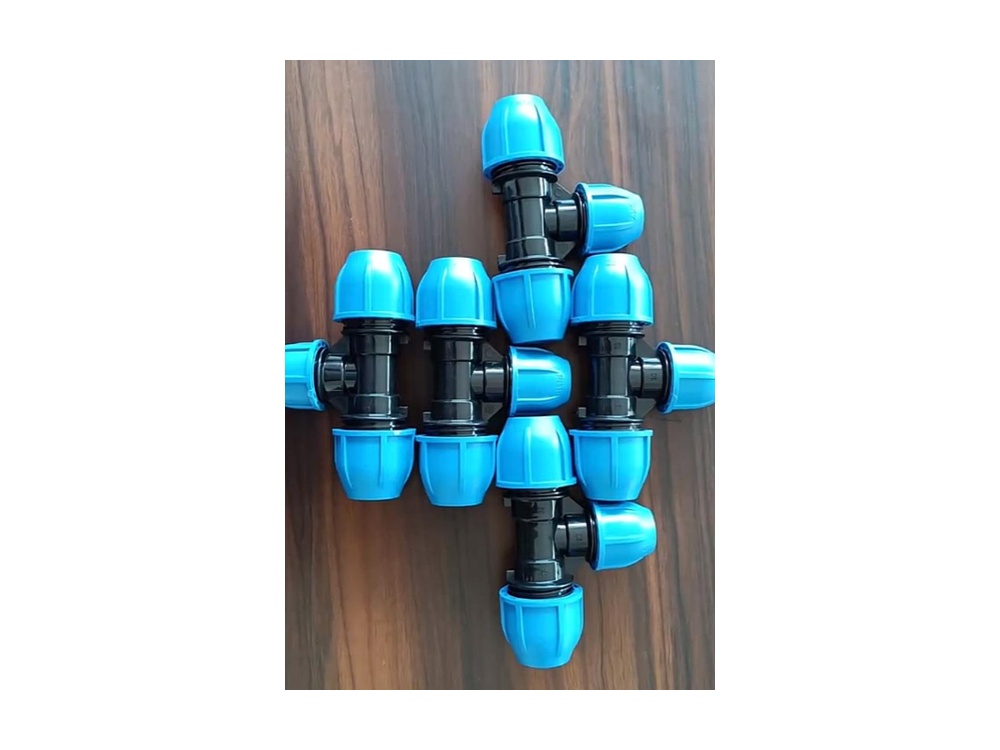

FEMALE TEE
HDPE compression tee with female threaded branch outlet for connecting valves, meters, and threaded pipe connections.
Product type
Pipe Fitting · Threaded Branch Tee
Size range
1.5"-2"
Working pressure
PN 16
Temperature
50 C
Standard
ISO 14236
Protection
IP68
Application note
Combines compression pipe connection on the run with a threaded branch for valves or meters.
Technical data
Specification tables
Core values are placed before product narrative so buyers can verify fit quickly.
Dimensions
1.5"-2"| Size | L (mm) | D | h | B (mm) | H (mm) |
|---|---|---|---|---|---|
| 1.5" | 50mm | Female Branch | PN 16 | HDPE | - |
| 2" | 63mm | Female Branch | PN 16 | HDPE | - |
Operating values
ISO 14236| Spec | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
|---|
Accuracy note
Standard BSP female thread conforming to ISO 228.
Product proof
Features and compliance
HDPE compression tee with female threaded branch outlet for connecting valves, meters, and threaded pipe connections.
Features
3 points
01
Reinforced female threaded branch with stainless steel reinforcing ring
02
HDPE compression sockets on main run
03
Rated for working pressures up to PN 16
Standards and limits
Fixed profile data
Standard
ISO 14236
Standard
PN 16
Working pressure
PN 16
Material
HDPE
Sizes
1.5", 2"
Quotation support
Ready to confirm price and availability?
Share the product name, quantity, delivery location, and any required size or certification.
