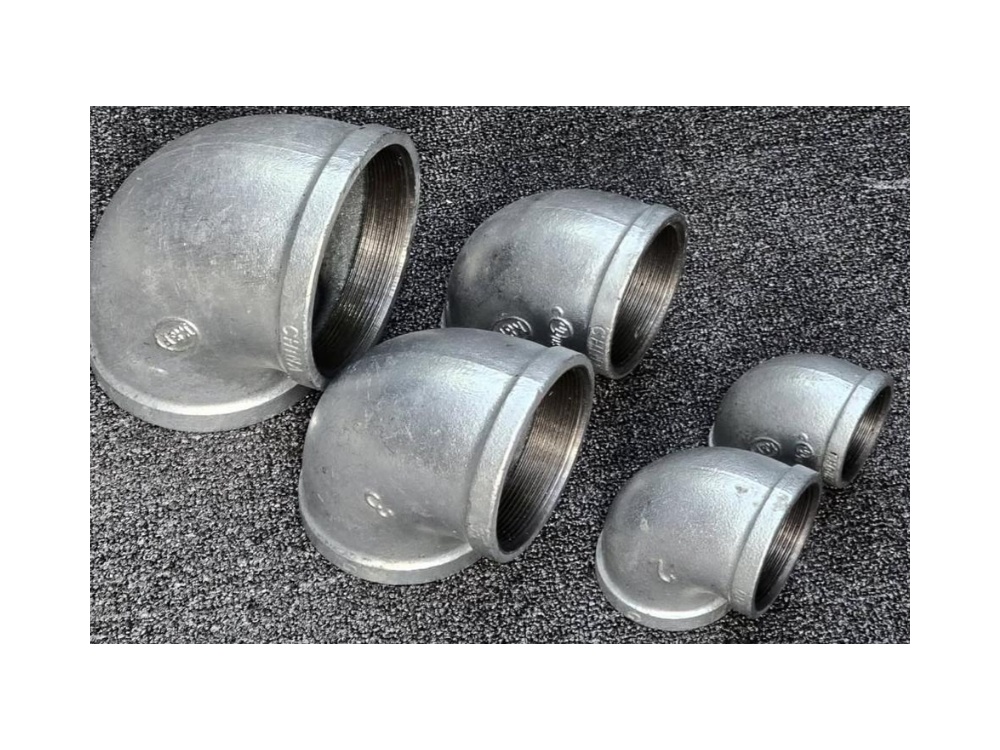

ELBOW
Galvanised steel threaded elbow for 90-degree directional changes in water supply and distribution networks.
Product type
Pipe Fitting · 90° Elbow
Size range
3/4"
Working pressure
PN 16
Temperature
50 C
Standard
BS 1387
Protection
IP68
Application note
Heavy-wall galvanized fitting delivering superior tensile strength and impact resistance.
Technical data
Specification tables
Core values are placed before product narrative so buyers can verify fit quickly.
Dimensions
3/4"| Size | L (mm) | D | h | B (mm) | H (mm) |
|---|---|---|---|---|---|
| 3/4" | DN20 | Female 90° | PN 16 | Galvanised steel | - |
Operating values
BS 1387| Spec | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
|---|
Accuracy note
Clean threads for tight seal with standard PTFE tape.
Product proof
Features and compliance
Galvanised steel threaded elbow for 90-degree directional changes in water supply and distribution networks.
Features
3 points
01
Hot-dip galvanized coating for long-lasting rust protection
02
Precision cut BSP/NPT female threads
03
Pressure tested to PN 16 standards
Standards and limits
Fixed profile data
Standard
BS 1387
Standard
ISO 7-1
Standard
PN 16
Working pressure
PN 16
Material
Galvanised steel
Size
3/4" (DN20)
Quotation support
Ready to confirm price and availability?
Share the product name, quantity, delivery location, and any required size or certification.
