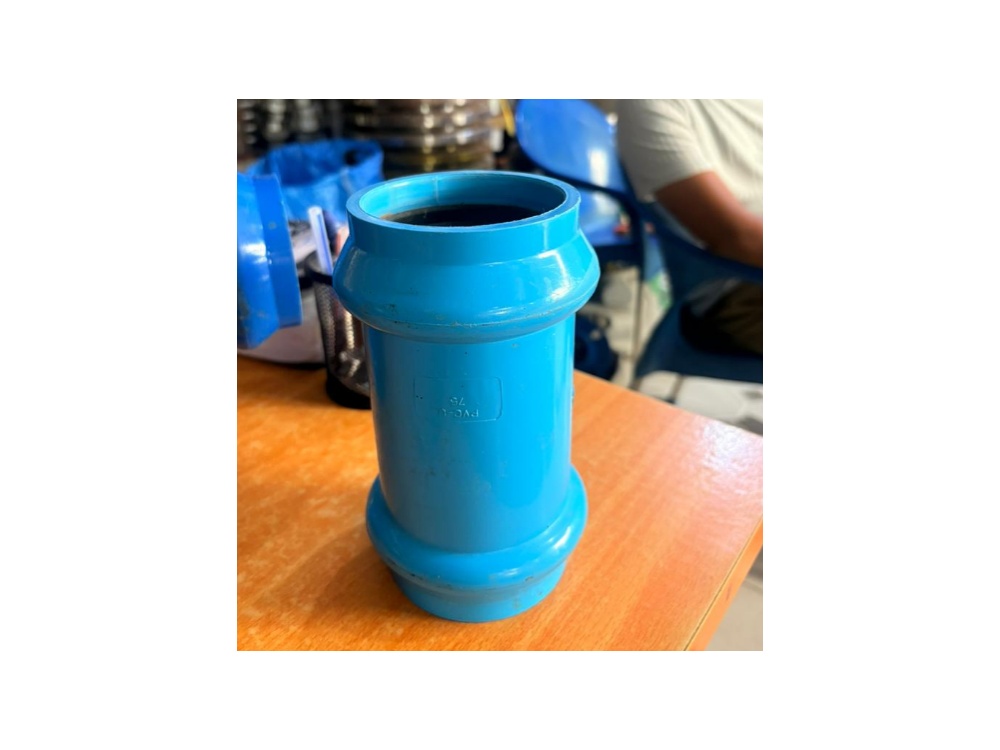

DOUBLE SOCKET
UPVC double socket pipe coupler with rubber ring elastomeric sealing for high-integrity municipal and domestic pressure lines.
Product type
Pipe Fitting · UPVC Coupler
Size range
75mm-225mm
Working pressure
PN 16
Temperature
50 C
Standard
ISO 1452
Protection
IP68
Application note
Smooth-bore UPVC push-fit coupler ensuring rapid installation and high hydraulic throughput.
Technical data
Specification tables
Core values are placed before product narrative so buyers can verify fit quickly.
Dimensions
75mm-225mm| Size | L (mm) | D | h | B (mm) | H (mm) |
|---|---|---|---|---|---|
| 75mm | OD 75 | Socket x Socket | PN 16 | UPVC | - |
| 90mm | OD 90 | Socket x Socket | PN 16 | UPVC | - |
| 110mm | OD 110 | Socket x Socket | PN 16 | UPVC | - |
| 125mm | OD 125 | Socket x Socket | PN 16 | UPVC | - |
| 140mm | OD 140 | Socket x Socket | PN 16 | UPVC | - |
| 160mm | OD 160 | Socket x Socket | PN 16 | UPVC | - |
| 225mm | OD 225 | Socket x Socket | PN 16 | UPVC | - |
Operating values
ISO 1452| Spec | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
|---|
Accuracy note
Standard push-fit ring groove ensuring consistent sealing pressure.
Product proof
Features and compliance
UPVC double socket pipe coupler with rubber ring elastomeric sealing for high-integrity municipal and domestic pressure lines.
Features
3 points
01
Non-corrosive UPVC material impervious to chemical attack
02
Rubber ring seal accommodates ground movement and thermal expansion
03
Rated for working pressures up to PN 16
Standards and limits
Fixed profile data
Standard
ISO 1452
Standard
BS EN 1452
Standard
PN 16
Working pressure
PN 16
Material
UPVC
Size range
75mm - 225mm
Quotation support
Ready to confirm price and availability?
Share the product name, quantity, delivery location, and any required size or certification.
