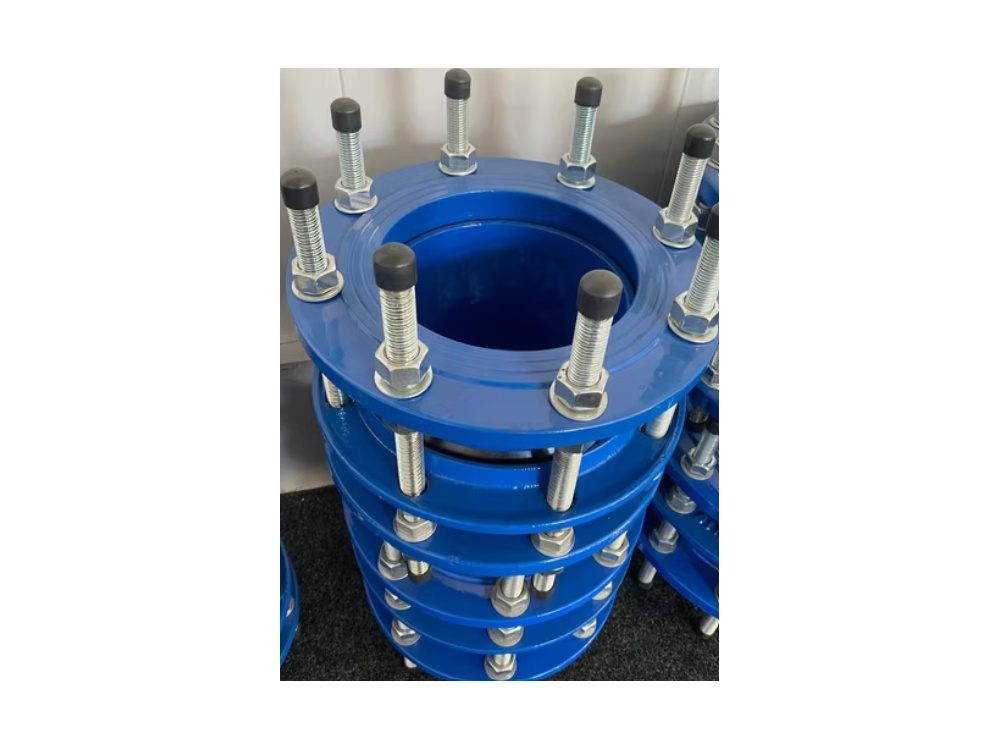

DISMANTLING JOINT
Ductile iron double-flanged dismantling joints providing longitudinal adjustment for easy installation, maintenance, and replacement of valves and pipeline fittings.
Essential fitting for flanged pipeline maintenance, simplifying valve replacement and inspection.
Specification tables
Core values are placed before product narrative so buyers can verify fit quickly.
Dimensions
75mm-250mm| Size | L (mm) | D | h | B (mm) | H (mm) |
|---|---|---|---|---|---|
| 75mm | DN75 | Double Flange | PN 16 | Ductile iron | Adjustable |
| 90mm | DN90 | Double Flange | PN 16 | Ductile iron | Adjustable |
| 110mm | DN100/110 | Double Flange | PN 16 | Ductile iron | Adjustable |
| 150mm | DN150 | Double Flange | PN 16 | Ductile iron | Adjustable |
| 200mm | DN200 | Double Flange | PN 16 | Ductile iron | Adjustable |
| 250mm | DN250 | Double Flange | PN 16 | Ductile iron | Adjustable |
Operating values
ISO 2531| Spec | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
|---|
Precision machined flange faces conforming to PN 16 drilling standards.
Features and compliance
Ductile iron double-flanged dismantling joints providing longitudinal adjustment for easy installation, maintenance, and replacement of valves and pipeline fittings.
Features
4 pointsHeavy ductile iron body with high tensile steel tie rods
Allows up to ±25mm longitudinal adjustment during fitting
Epoxy coated inside and out for maximum lifespan in aggressive soils
Full diameter water path with minimal head loss
Standards and limits
Fixed profile dataReady to confirm price and availability?
Share the product name, quantity, delivery location, and any required size or certification.
