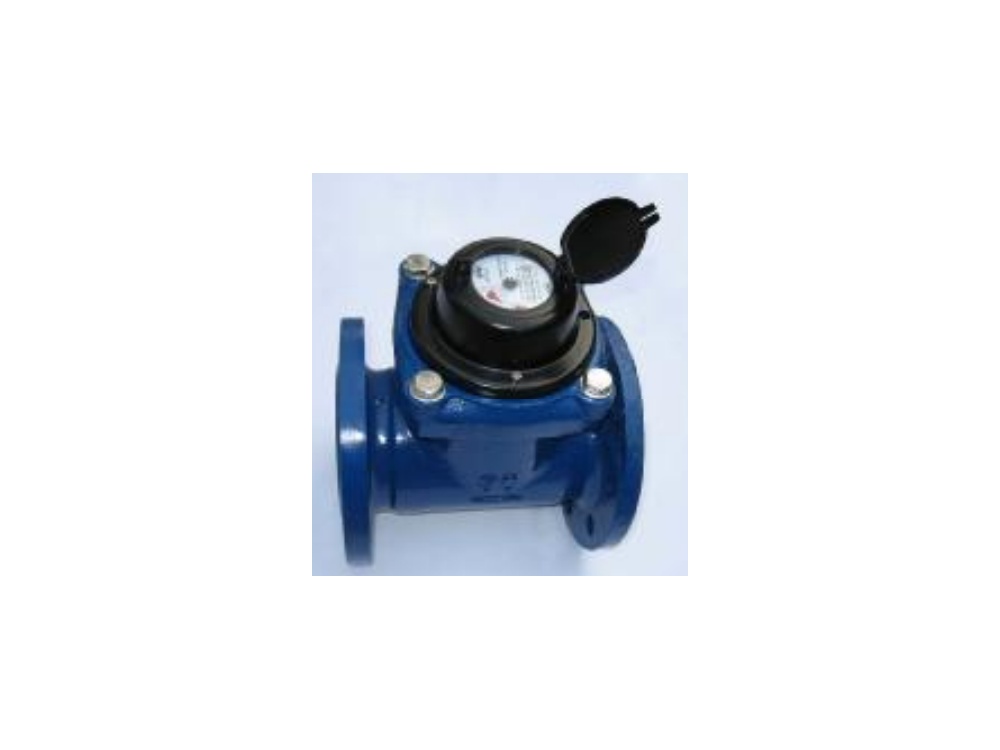

BULK METER
Flanged dry-dial multijet water meter with durable epoxy-coated cast iron body, anti-magnetic shield, removable measuring mechanism, strainers, flanges, gaskets, and bolts.
Built for high-volume commercial, industrial, and municipal bulk distribution billing.
Specification tables
Core values are placed before product narrative so buyers can verify fit quickly.
Dimensions
2.5"-6"| Size | L (mm) | D | h | B (mm) | H (mm) |
|---|---|---|---|---|---|
| 2.5" | DN65 | Flanged | PN 16 | Cast Iron | - |
| 3" | DN80 | Flanged | PN 16 | Cast Iron | - |
| 4" | DN100 | Flanged | PN 16 | Cast Iron | - |
| 6" | DN150 | Flanged | PN 16 | Cast Iron | - |
Operating values
MID| Spec | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
|---|---|---|---|---|---|---|
| Accuracy Upper | ±2% | ±2% | ±2% | ±2% | n/a | n/a |
| Accuracy Lower | ±5% | ±5% | ±5% | ±5% | n/a | n/a |
±2% for upper flow range (Q2 to Q4) and ±5% for lower flow range (Q1 to Q2).
Features and compliance
Flanged dry-dial multijet water meter with durable epoxy-coated cast iron body, anti-magnetic shield, removable measuring mechanism, strainers, flanges, gaskets, and bolts.
Features
5 pointsRemovable measuring mechanism serviceable without removing the meter body from the line
Heavy-duty cast iron body with electrostatic epoxy coating
Anti-magnetic shield and sealed dry-dial register
Accuracy: ±2% (upper range), ±5% (lower range)
Complete set includes built-in strainer, counter flanges, gaskets, and bolt kit
Standards and limits
Fixed profile dataReady to confirm price and availability?
Share the product name, quantity, delivery location, and any required size or certification.
